The installation of an Ishida AirScan leak detection system at Sinnack Snacks, Germany’s only large-scale bakery to focus on tortillas, has enabled the company to automate its end-of-line packing process, while ensuring that its quality control procedures are able to keep pace with the increased throughput.

The Ishida solution can inspect as many as 2,500 packs per hour, reliably detecting leaks as small as 0.5mm to ensure the integrity of the protective atmosphere packaging.

Sinnack Snacks produces wheat, multigrain and protein tortillas in diameters of 20, 25 and 30cm, which are sold in packs of 6, 8 and 12. The fresh products are made without preservatives but have a shelf life of six months thanks to their protective carbon dioxide and nitrogen atmospheres – provided that the thermoformed packaging is absolutely airtight.

However, bits of the tortillas can sometimes get into the seals during the packing process and cause leaks. Other potential sources of defects include wrinkles in the seal. The stage of the process that comes after the films are changed on the thermoforming machinery is also critical. If the films overlap at this point, the packaging may not be sealed correctly.

For these reasons, Sinnack Snacks has always made sure to test the integrity of its protective atmospheres. The company previously used a system with a vacuum chamber to check the entire content of fully packed boxes for leaks.

“This was a very time-consuming quality control exercise, because when a reject was found, we didn't know first which of the packs was the one with the leak,” said managing partner Jana Sinnack. “Not only that, but quality control was also not 100% reliable.”

With growing sales of its tortillas, Sinnack Snacks needed to automate the end-of-line packing on one of its lines and this required a new means of leak testing. “We were looking for an in-line system that was capable of checking every single pack at high speed and picking out any rejects,” Sinnack explains.

The Ishida solution is the company’s fully automated AirScan, which uses a laser module to detect the specific vibrations caused by leaking carbon dioxide molecules. The machine can reliably detect leaks measuring just 0.5 mm. As a result, users not only gain the security of knowing that leaks will be found but can also cut down on material costs because the inspection process exerts minimal pressure and is therefore non-destructive.

In addition, the Ishida AirScan is compact in size and can easily be integrated into existing packing lines. Another factor in Sinnack Snacks' decision was the fact that Ishida had already successfully deployed the system in a similar application in the bakery industry.

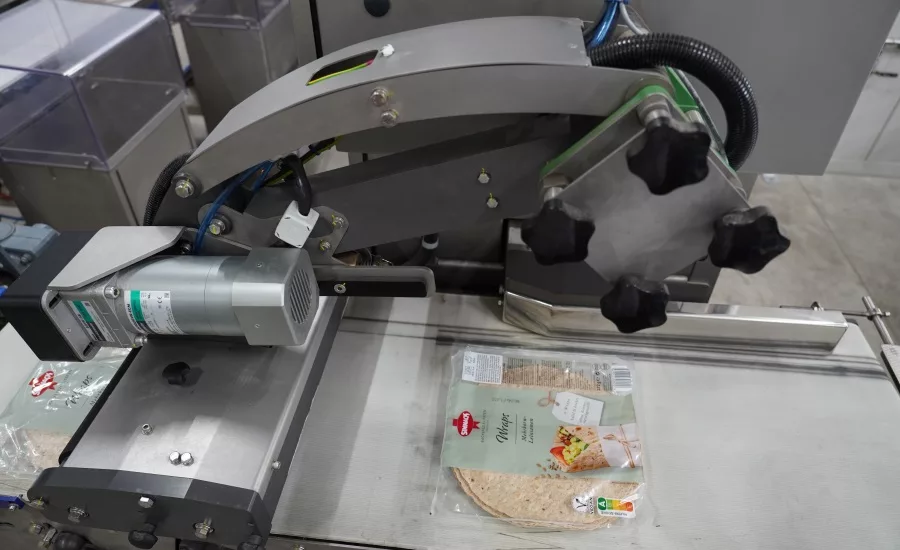

The Ishida AirScan has enabled quality assurance at Sinnack Snacks to reach a new level. Up to 2,500 packs can be inspected per hour, with the system checking both the top and bottom sides for escaping carbon dioxide. The leak detector compiles all the process data in reports that can then be viewed. As Sinnack explains, “We scrutinize any rejected products in minute detail, because identifying the causes of problems ultimately makes our processes more efficient.”

The success of the first machine has led Sinnack Snacks to install Ishida AirScan systems on two further lines as part of its ongoing automation process. Ishida customized the machines to suit the company's specific requirements in terms of pack dimensions and its reject system.
